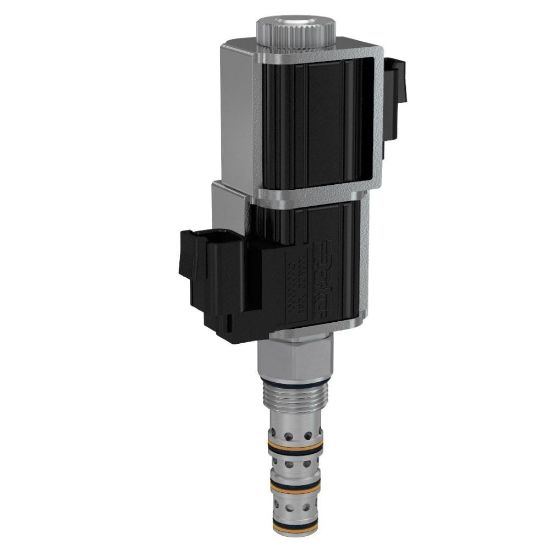

4 Way 3 Position Spool Type Solenoid Valve - GS045260ND

Name: 4 Way 3 Position Spool Type Solenoid Valve - GS045260ND
SKU: GS045260ND
Availability: OutOfStock

Parker has a large selection of direct acting 4-way, 3-position spool-type solenoid valves to cover a wide range of flow requirements up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi); closed, open, float, and tandem centers available.

Availability:

Backordered

SKU: GS045260ND

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Body Material	n/a
Maximum Operating Pressure	5000 psi	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Hydraulic Systems Division	Minimum Operating Temperature	-30 °F
Weight	0.26 kg	Function	4-way
Maximum Inlet Pressure Rating	5000 psi	Coil Nut Tightening Torque	4.1 Nm
Installation Torque	25 lb-ft	Flow Rate	11 Gal/min
Cavity Size	C10-4	Maximum Flow Rate	42 L/min
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Operating Temperature	+121 °C
Actuation Type	Electrical, Manual	Operation Type	Solenoid operated, Manually operated
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-34 to +121 °C
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Configuration	Closed Center
Mounting Type	Screw in cartridge valve	Input Voltage	85% of rated voltage at 72°F (20°C) min
Coil Type	5/8" Super Coil	Leak Rate	160 @ 3000 PSI (210 BAR) cm3/min
Response Time	30-60 ms	Maximum Tank Pressure	210 bar
Override Functionality	Push/Pull - All Detent
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Flow Rate	11 GAL/MIN, 42 L/MIN
Actuation Type	Electrical, Manual	Configuration	Closed Center
Seal Type	Nitrile
