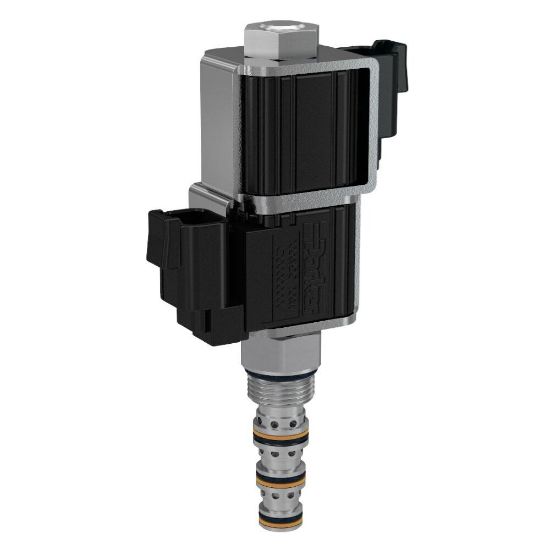

4 Way 3 Position Spool Type Solenoid Valve - GS025920N

Name: 4 Way 3 Position Spool Type Solenoid Valve - GS025920N
SKU: GS025920N
Availability: OutOfStock

Parker has a large selection of direct acting 4-way, 3-position spool-type solenoid valves to cover a wide range of flow requirements up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi); closed, open, float, and tandem centers available.

Availability:

Backordered

SKU: GS025920N

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.18 kg	Maximum Operating Pressure	350 bar
Seal Material	Nitrile	Body Material	n/a
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Division	Hydraulic Systems Division
Minimum Operating Temperature	-34 °C	Function	4-way
Maximum Inlet Pressure Rating	350 bar	Installation Torque	30 Nm
Coil Nut Tightening Torque	4.1 Nm	Cavity Size	C08-4
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Operating Temperature	+121 °C
Actuation Type	Electrical, Manual	Operation Type	Solenoid operated, Manually operated
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-34 to +121 °C
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Configuration	Open Center
Leak Rate	500 @ 5000 PSI (350 BAR) cm3/min	Mounting Type	Screw in cartridge valve
Coil Type	1/2" Super Coil	Input Voltage	85% of rated voltage at 72°F (20°C) min
Response Time	50 ms	Maximum Tank Pressure	3000 psi
Maximum Flow Rate	3.5 Gal/min	Override Functionality	Detented
Flow Rate	3.5 Gal/min
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Actuation Type	Electrical, Manual
Configuration	Open Center	Seal Type	Nitrile
Flow Rate	3.5 GAL/MIN, 13 L/MIN
