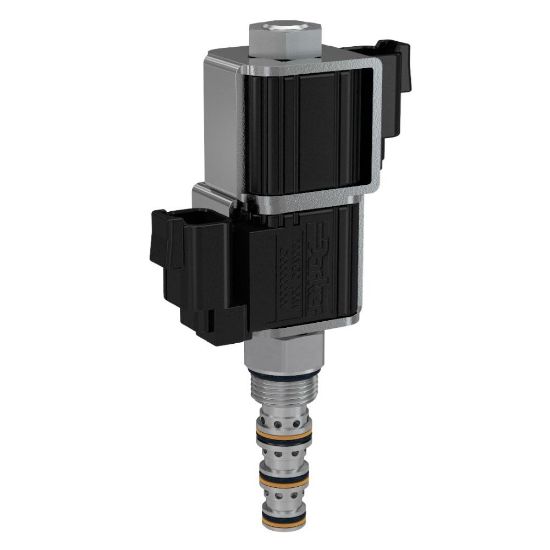

4 Way 3 Position Spool Type Solenoid Valve - GS025120V

Name: 4 Way 3 Position Spool Type Solenoid Valve - GS025120V
SKU: GS025120V
Availability: OutOfStock

Parker has a large selection of direct acting 4-way, 3-position spool-type solenoid valves to cover a wide range of flow requirements up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi); closed, open, float, and tandem centers available.

Availability:

Backordered

SKU: GS025120V

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.18 kg	Seal Material	Fluorocarbon
Body Material	n/a	Maximum Operating Pressure	5000 psi
Minimum Operating Temperature	-26 °C	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Hydraulic Systems Division	Flow Rate	17 L/min
Function	4-way	Maximum Inlet Pressure Rating	5000 psi
Installation Torque	30 Nm	Coil Nut Tightening Torque	3 lb-ft
Cavity Size	C08-4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+204 °C	Actuation Type	Electrical, Manual
Operation Type	Solenoid operated, Manually operated	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-26 to +204 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Configuration	Closed Center	Leak Rate	250 @ 5000 PSI (350 BAR) cm3/min
Mounting Type	Screw in cartridge valve	Maximum Flow Rate	4.5 Gal/min
Coil Type	1/2" Super Coil	Input Voltage	85% of rated voltage at 72°F (20°C) min
Response Time	50 ms	Maximum Tank Pressure	210 bar
Override Functionality	Detented
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Actuation Type	Electrical, Manual
Flow Rate	4.5 GAL/MIN, 17 L/MIN	Configuration	Closed Center
Seal Type	Fluorocarbon
