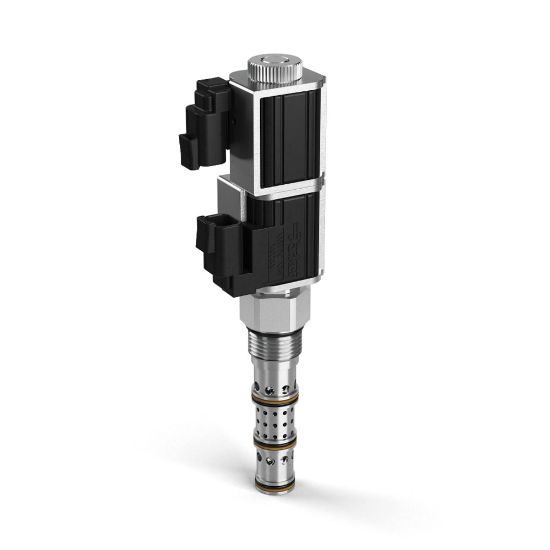

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

4 Way 3 Position Spool Type Solenoid Valve - DSH12559N

Name: 4 Way 3 Position Spool Type Solenoid Valve - DSH12559N
SKU: DSH12559N
Availability: OutOfStock

Parker has a large selection of direct acting 4-way, 3-position spool-type solenoid valves to cover a wide range of flow requirements up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi); closed, open, float, and tandem centers available.

Availability:

Backordered

SKU: DSH12559N

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	350 bar	Seal Material	Nitrile
Body Material	n/a	Maximum Flow Rate	15 Gal/min
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Division	Hydraulic Systems Division
Flow Rate	15 Gal/min	Minimum Operating Temperature	-30 °F
Weight	1 lb	Override Functionality	n/a
Function	4-way	Maximum Inlet Pressure Rating	5000 psi
Actuation Type	Electrical	Operation Type	Solenoid Operated
Coil Nut Tightening Torque	4.1 Nm	Cavity Size	C12-4L
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Operating Temperature	+250 °F
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-34 to +121 °C
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Configuration	Open Center
Mounting Type	Screw in cartridge valve	Input Voltage	85% of rated voltage at 72°F (20°C) min
Coil Type	5/8" Super Coil	Leak Rate	160 @ 3000 PSI (210 BAR) cm3/min
Response Time	30-60 ms	Installation Torque	74 Nm
Maximum Tank Pressure	3000 psi
Flow Rate	15 GAL/MIN, 57 L/MIN	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Actuation Type	Electrical	Configuration	Open Center
Seal Type	Nitrile
