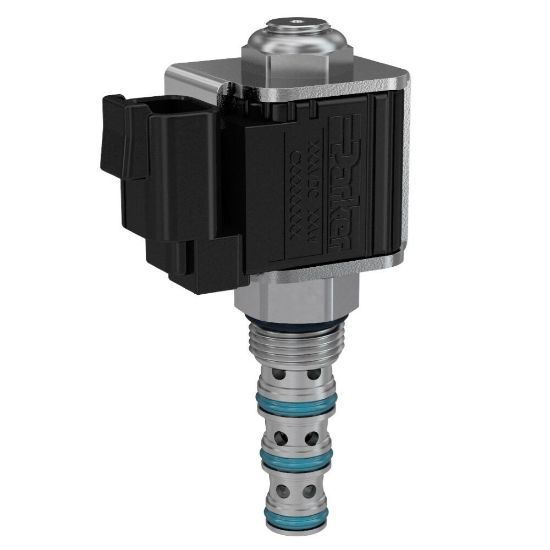

4 Way 2 Position Spool Type Solenoid Valve - DSL084E1V

Parker’s direct acting 4-way, 2-position spool-type solenoids offer a simple electronic solution for actuation or reversing applications; available with flows up to 113 lpm (30 gpm) and pressures as high as 350 bar (5000 psi).

Availability:	Backordered
Partner Available:	Backordered

SKU: DSL084E1V

$83.25

Products specifications

Attribute name	Attribute value
Configuration	n/a	Seal Material	Fluorocarbon
Body Material	n/a	Minimum Operating Temperature	-15 °F
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Division	Hydraulic Systems Division
Maximum Operating Pressure	3600 psi	Override Functionality	n/a
Function	4-way	Flow Rate	4 Gal/min
Actuation Type	Electrical	Operation Type	Solenoid Operated
Cavity Size	C08-4	Weight	0.29 lb
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Operating Temperature	+400 °F
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-26 to +204 °C
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Mounting Type	Screw in cartridge valve
Coil Type	1/2" Super Coil	Input Voltage	85% of rated voltage at 72°F (20°C) min
Response Time	50 ms	Coil Nut Tightening Torque	7-10 Nm
Flow Direction	All ports blocked De-Energized, 2-1, 3-4 Energized	Maximum Flow Rate	4 Gal/min
Installation Torque	31-37 Nm	Maximum Inlet Pressure Rating	250 bar
Leak Rate	160 @ 3600 PSI (250 BAR) cm3/min
Seal Material	Fluorocarbon	Actuation Type	Electrical
Flow Rate	4 GAL/MIN, 15 L/MIN	Configuration	N/A
Flow Direction	All ports blocked De-Energized, 2-1, 3-4 Energized	Maximum Inlet Pressure Rating	3600 PSI, 250 BAR
