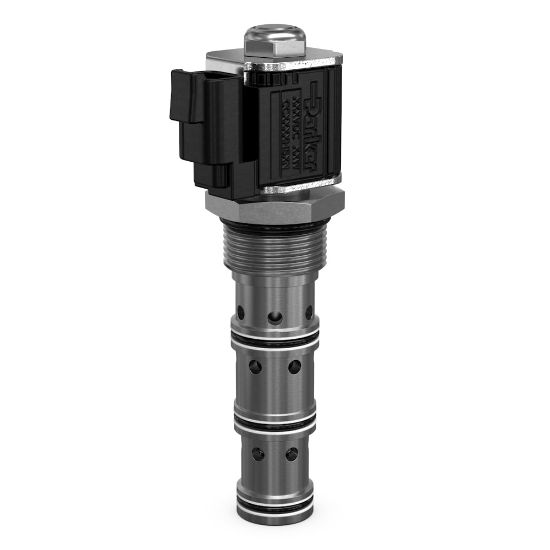

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

4 Way 2 Position Spool Type Solenoid Valve - DSH164HRV

Name: 4 Way 2 Position Spool Type Solenoid Valve - DSH164HRV
SKU: DSH164HRV
Availability: OutOfStock

Parker’s direct acting 4-way, 2-position spool-type solenoids offer a simple electronic solution for actuation or reversing applications; available with flows up to 113 lpm (30 gpm) and pressures as high as 350 bar (5000 psi).

Availability:

Backordered

SKU: DSH164HRV

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Fluorocarbon	Body Material	n/a
Maximum Operating Pressure	5000 psi	Minimum Operating Temperature	-15 °F
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Division	Hydraulic Systems Division
Override Functionality	n/a	Function	4-way
Maximum Inlet Pressure Rating	5000 psi	Actuation Type	Electrical
Operation Type	Solenoid Operated	Cavity Size	C16-4
Maximum Flow Rate	30 Gal/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+400 °F	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-15 to +400 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Mounting Type	Screw in cartridge valve	Weight	0.59 kg
Coil Type	1/2" Super Coil	Input Voltage	85% of rated voltage at 72°F (20°C) min
Coil Nut Tightening Torque	7-10 Nm	Flow Direction	2-1, 3-4 De-Energized, 3-2, 4-1 Energized
Flow Rate	30 Gal/min	Leak Rate	350 De-energized, 1.5 GPM Energized Pilot Flow @ 3000 PSI (207 BAR) cm3/min
Configuration	Motor Regen Transition	Response Time	130 ms
Installation Torque	30-40 lb-ft
Seal Material	Fluorocarbon	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Actuation Type	Electrical	Flow Direction	2-1, 3-4 De-Energized, 3-2, 4-1 Energized
Flow Rate	30 GAL/MIN, 113 L/MIN	Configuration	Motor Regen Transition
