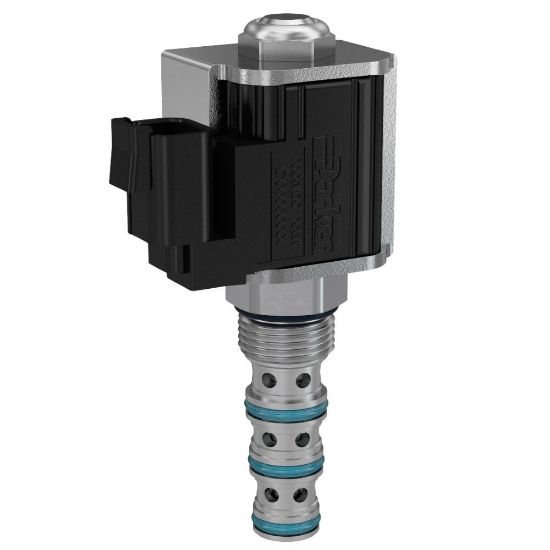

4 Way 2 Position Spool Type Solenoid Valve - DSH104BT

Parker’s direct acting 4-way, 2-position spool-type solenoids offer a simple electronic solution for actuation or reversing applications; available with flows up to 113 lpm (30 gpm) and pressures as high as 350 bar (5000 psi).

Availability:	Backordered
Partner Available:	Backordered

SKU: DSH104BT

$142.50

Products specifications

Attribute name	Attribute value
Configuration	n/a	Body Material	n/a
Maximum Operating Pressure	5000 psi	Minimum Operating Temperature	-35 °F
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Division	Hydraulic Systems Division
Weight	0.2 kg	Function	4-way
Maximum Inlet Pressure Rating	5000 psi	Seal Material	D-Ring (Standard)
Flow Rate	10 Gal/min	Cavity Size	C10-4
Maximum Flow Rate	38 L/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Actuation Type	Electrical, Manual	Operation Type	Solenoid operated, Manually operated
Valve Material	All parts steel. All operating parts hardened steel	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Mounting Type	Screw in cartridge valve	Operating Temperature	-35 to +200 °F
Maximum Operating Temperature	+93 °C	Input Voltage	85% of rated voltage at 72°F (20°C) min
Override Functionality	Push and Twist	Coil Nut Tightening Torque	5-7 lb-ft
Coil Type	5/8" Super Coil	Flow Direction	3-2, 4-1 De-Energized, 2-1, 3-4 Energized
Installation Torque	69-75 Nm	Leak Rate	320 @ 5000 PSI (350 BAR) cm3/min
Response Time	30-60 ms
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Seal Material	D-Ring (Standard)
Flow Rate	10 GAL/MIN, 38 L/MIN	Actuation Type	Electrical, Manual
Configuration	N/A	Flow Direction	3-2, 4-1 De-Energized, 2-1, 3-4 Energized
