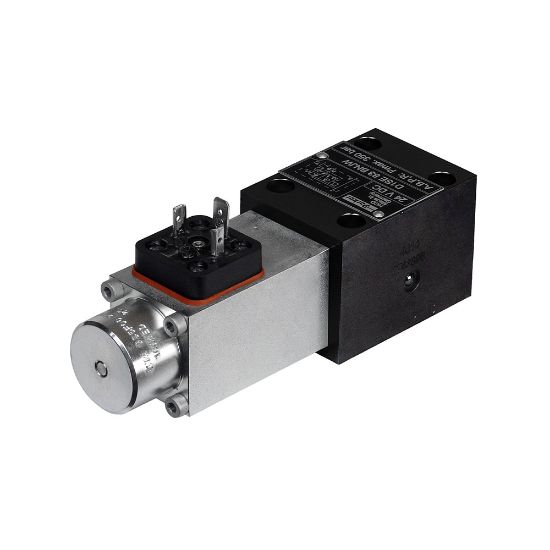

3/2 Way Seated Type Directional Control Valve - Series D1SE - D1SE83BVGW

Name: 3/2 Way Seated Type Directional Control Valve - Series D1SE - D1SE83BVGW
SKU: D1SE83BVGW
Availability: OutOfStock

The proven seated type directional control valve series D1SE in size NG06 is almost leakage-free and can be used for a wide range of hydraulic applications.

Availability:

Backordered

SKU: D1SE83BVGW

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	FPM	Actuation Type	Solenoid
Mounting Type	Subplate	Product Series	Directional Control Valve
Minimum Operating Temperature	-20 °C	Weight	1.5 kg
Division	Industrial Systems Division Europe	Connection Type	Connector as per EN 175301-803
For Fluid Type	Water-Glycol	Maximum Operating Pressure	350 bar
Operation Type	Direct	Solenoid Connection	Connector As Per EN 175301-803
Function	2-way	Maximum Flow Rate	20 L/min
Body Material	Steel	Maximum Operating Temperature	60 °C
Flow Rate	20 L/min	Port Connection	NG06 / CETOP 03
Mounting Position	Unrestricted
Seal Material	FPM	Spool Code	83
Input Voltage	205 V DC
