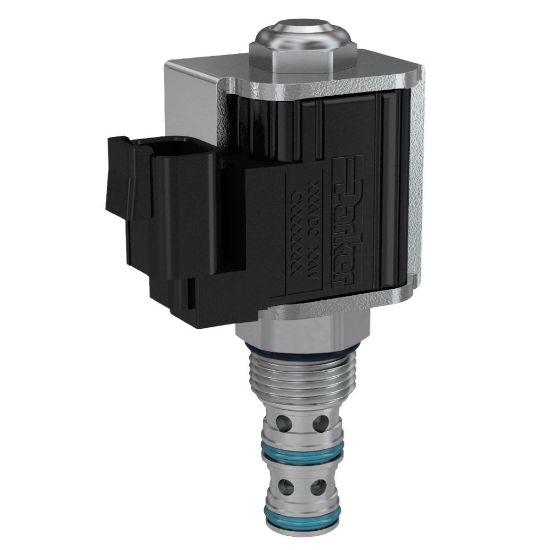

3 Way Solenoid Valves for High Pressure Hydraulic Applications - DSL103BP

High pressure solenoid valves are direct acting 3-way, 2-position spool-type to cover a wide range of flows up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi). These screw-in cartridge valves are fast to respond to coil voltage.

Availability:	Backordered
Partner Available:	Backordered

SKU: DSL103BP

$117.50

Products specifications

Attribute name	Attribute value
Weight	0.19 kg	Body Material	n/a
Minimum Operating Temperature	-37 °C	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Hydraulic Systems Division	Maximum Operating Pressure	3600 psi
Function	3-Way	Maximum Flow Rate	8 Gal/min
Flow Rate	8 Gal/min	Seal Material	D-Ring (Standard)
Cavity Size	C10-3	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Actuation Type	Electrical, Manual	Operation Type	Solenoid operated, Manually operated
Valve Material	All parts steel. All operating parts hardened steel	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Mounting Type	Screw in cartridge valve	Operating Temperature	-35 to +200 °F
Maximum Operating Temperature	+93 °C	Input Voltage	85% of rated voltage at 72°F (20°C) min
Coil Nut Tightening Torque	5-7 lb-ft	Flow Direction	2-1 De-energized, 2-3 Energized
Coil Type	5/8" Super Coil	Configuration	Normally Closed, Selector
Response Time	50-100 ms	Override Functionality	Pull and Release
Maximum Inlet Pressure Rating	3600 psi	Leak Rate	180 @ 3600 PSI (250 BAR) cm3/min
Installation Torque	37-41 lb-ft
Flow Rate	8 GAL/MIN, 30 L/MIN	Seal Material	D-Ring (Standard)
Actuation Type	Electrical, Manual	Flow Direction	2-1 De-energized, 2-3 Energized
Configuration	Normally Closed, Selector	Maximum Inlet Pressure Rating	3600 PSI, 250 BAR
