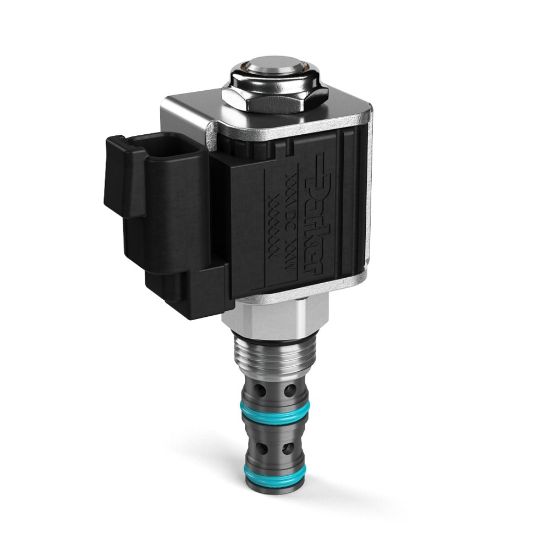

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

3 Way Solenoid Valves for High Pressure Hydraulic Applications - DSH083NTV

High pressure solenoid valves are direct acting 3-way, 2-position spool-type to cover a wide range of flows up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi). These screw-in cartridge valves are fast to respond to coil voltage.

Availability:	Backordered
Partner Available:	Backordered

SKU: DSH083NTV

$131.25

Products specifications

Attribute name	Attribute value
Seal Material	Fluorocarbon	Body Material	n/a
Maximum Operating Pressure	5000 psi	Minimum Operating Temperature	-15 °F
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Division	Hydraulic Systems Division
Weight	0.13 kg	Function	3-Way
Maximum Inlet Pressure Rating	350 bar	Cavity Size	C08-3
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Operating Temperature	+204 °C
Actuation Type	Electrical, Manual	Operation Type	Solenoid operated, Manually operated
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-15 to +400 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Leak Rate	250 @ 5000 PSI (350 BAR) cm3/min
Mounting Type	Screw in cartridge valve	Coil Type	1/2" Super Coil
Input Voltage	85% of rated voltage at 72°F (20°C) min	Response Time	50 ms
Installation Torque	32-36 lb-ft	Override Functionality	Push and Twist
Coil Nut Tightening Torque	7-10 Nm	Flow Rate	3, 4 Gal/min
Configuration	Normally Open, Selector	Flow Direction	2-3 De-energized, 2-1 Energized
Maximum Flow Rate	4 Gal/min
Seal Material	Fluorocarbon	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Actuation Type	Electrical, Manual	Flow Rate	3, 4 GAL/MIN, 11.3, 15 L/MIN
Configuration	Normally Open, Selector	Flow Direction	2-3 De-energized, 2-1 Energized
