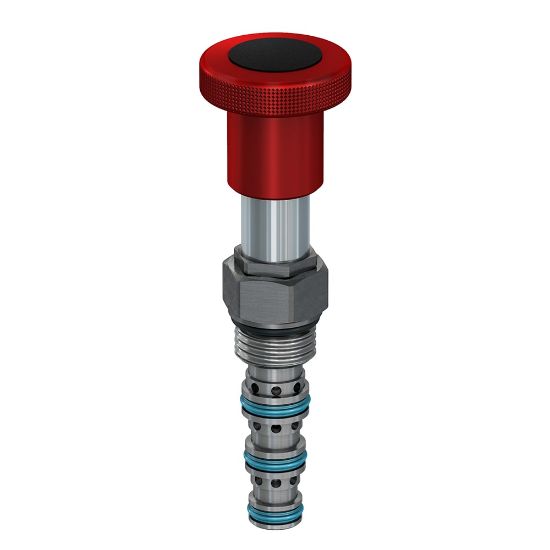

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

3 Position, 4 Way Pull/Push to Shift Spool Type Manual Valve - DMH085C4V

Name: 3 Position, 4 Way Pull/Push to Shift Spool Type Manual Valve - DMH085C4V
SKU: DMH085C4V
Availability: OutOfStock

REGIONAL - Parker’s 3-position, 4-way manual spool valves are spring centered shift by pushing and pulling with available detents and are capable of flows up to 19 lpm (5 gpm) and pressures as high as 350 bar (5000 psi).

Availability:

Backordered

SKU: DMH085C4V

Qty:

Products specifications

Attribute name	Attribute value
Operation Type	Manual	Seal Material	Fluorocarbon
Body Material	n/a	Maximum Operating Pressure	5000 psi
Minimum Operating Temperature	-15 °F	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Hydraulic Systems Division	Weight	0.12 kg
Flow Rate	5 Gal/min	Maximum Inlet Pressure Rating	350 bar
Cavity Size	C08-4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+400 °F	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-15 to +400 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Configuration	Floating Center	Function	Spool Type
Leak Rate	500 @ 5000 PSI (350 BAR) cm3/min	Actuation Type	Push/Pull to shift
Maximum Flow Rate	4.5 Gal/min	Installation Torque	36 lb-ft
Maximum Tank Pressure	35 bar	Detents	No
Force	11 lbf
Seal Material	Fluorocarbon	Flow Rate	5 GAL/MIN, 19 L/MIN
Configuration	Floating Center	Detents	No
