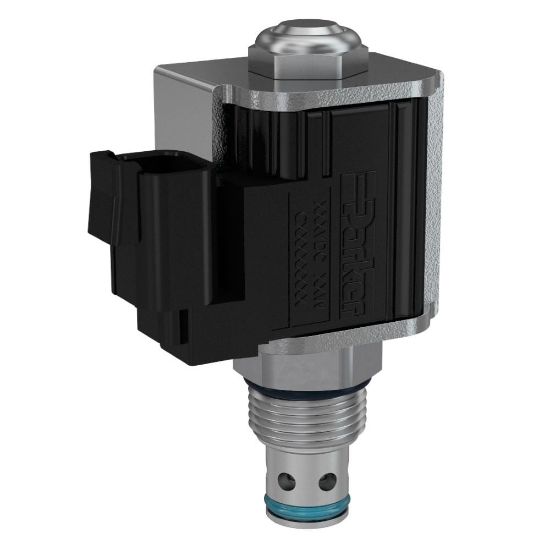

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

2 Way Spool Type Solenoid Valve - DSL102CTV

Parker’s selection of direct acting 2-way, 2-position spool-type solenoid valves cover a wide range of flows up to 75 lpm (20 gpm) and pressures as high as 350 bar (5000 psi), with both normally-closed and normally-open options available.

Availability:	Backordered
Partner Available:	Backordered

SKU: DSL102CTV

$105.75

Products specifications

Attribute name	Attribute value
Function	2-way	Maximum Operating Pressure	250 bar
Seal Material	Fluorocarbon	Body Material	n/a
Minimum Operating Temperature	-15 °F	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Hydraulic Systems Division	Maximum Flow Rate	30 L/min
Flow Rate	30 L/min	Cavity Size	C10-2
Weight	0.4 lb	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+400 °F	Configuration	Normally Closed
Actuation Type	Electrical, Manual	Operation Type	Solenoid operated, Manually operated
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-15 to +400 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Wire Mesh Screen Included	No
Mounting Type	Screw in cartridge valve	Input Voltage	85% of rated voltage at 72°F (20°C) min
Response Time	30 ms	Override Functionality	Push and Twist
Coil Nut Tightening Torque	5-7 lb-ft	Coil Type	5/8" Super Coil
Maximum Inlet Pressure Rating	250 bar	Leak Rate	120 CC/min @ 3600 PSI (250 BAR) cm3/min
Installation Torque	50-56 Nm
Seal Material	Fluorocarbon	Configuration	Normally Closed
Flow Rate	8 GAL/MIN, 30 L/MIN	Actuation Type	Electrical, Manual
Wire Mesh Screen Included	No	Maximum Inlet Pressure Rating	3600 PSI, 250 BAR
