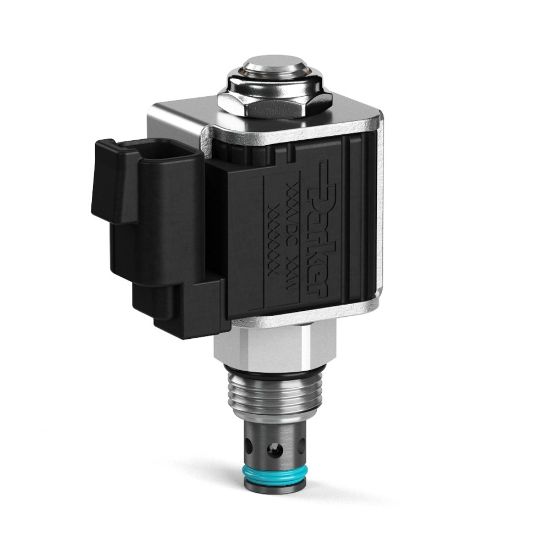

2 Way Spool Type Solenoid Valve - DSL082CP

Parker’s selection of direct acting 2-way, 2-position spool-type solenoid valves cover a wide range of flows up to 75 lpm (20 gpm) and pressures as high as 350 bar (5000 psi), with both normally-closed and normally-open options available.

Availability:	Backordered
Partner Available:	Backordered

SKU: DSL082CP

$110.75

Products specifications

Attribute name	Attribute value
Weight	0.11 kg	Function	2-way
Maximum Operating Pressure	250 bar	Body Material	n/a
Minimum Operating Temperature	-35 °F	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Hydraulic Systems Division	Cavity Size	C08-2
Flow Rate	4 Gal/min	Response Time	40 ms
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Configuration	Normally Closed
Actuation Type	Electrical, Manual	Operation Type	Solenoid operated, Manually operated
Valve Material	All parts steel. All operating parts hardened steel	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Wire Mesh Screen Included	No	Mounting Type	Screw in cartridge valve
Operating Temperature	-35 to +200 °F	Maximum Operating Temperature	+93 °C
Coil Type	1/2" Super Coil	Input Voltage	85% of rated voltage at 72°F (20°C) min
Coil Nut Tightening Torque	7-10 Nm	Seal Material	D-Ring
Maximum Flow Rate	4 Gal/min	Installation Torque	23-27 lb-ft
Override Functionality	Pull and Release	Maximum Inlet Pressure Rating	250 bar
Leak Rate	120 CC/min @ 3600 PSI (250 BAR) cm3/min
Configuration	Normally Closed	Actuation Type	Electrical, Manual
Flow Rate	4 GAL/MIN, 15 L/MIN	Wire Mesh Screen Included	No
Seal Material	D-Ring	Maximum Inlet Pressure Rating	3600 PSI, 250 BAR
