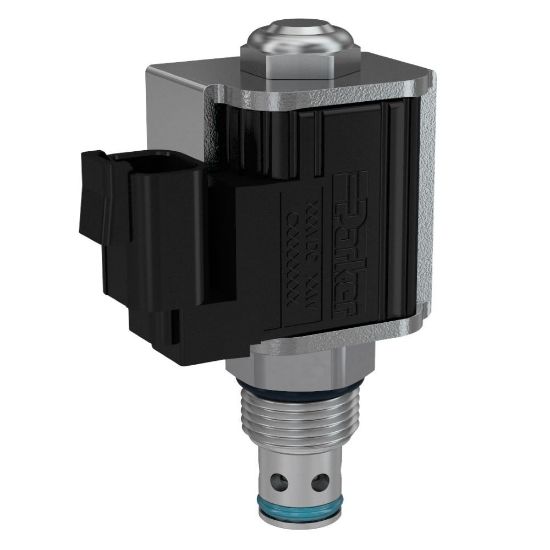

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

2 Way Spool Type Solenoid Valve - DSH102CTV

Parker’s selection of direct acting 2-way, 2-position spool-type solenoid valves cover a wide range of flows up to 75 lpm (20 gpm) and pressures as high as 350 bar (5000 psi), with both normally-closed and normally-open options available.

Availability:	Backordered
Partner Available:	Backordered

SKU: DSH102CTV

$127.25

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	350 bar	Function	2-way
Body Material	n/a	Minimum Operating Temperature	-26 °C
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Division	Hydraulic Systems Division
Maximum Flow Rate	30 L/min	Flow Rate	30 L/min
Cavity Size	C10-2	Maximum Inlet Pressure Rating	350 bar
Weight	0.4 lb	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+400 °F	Configuration	Normally Closed
Actuation Type	Electrical, Manual	Operation Type	Solenoid operated, Manually operated
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-26 to +204 °C
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Wire Mesh Screen Included	No
Mounting Type	Screw in cartridge valve	Input Voltage	85% of rated voltage at 72°F (20°C) min
Response Time	30 ms	Override Functionality	Push and Twist
Coil Nut Tightening Torque	5-7 lb-ft	Coil Type	5/8" Super Coil
Leak Rate	160 CC/min @ 5000 PSI (350 BAR) cm3/min	Seal Material	Flurocarbon
Installation Torque	69-75 Nm
Seal Material	Fluorocarbon	Configuration	Normally Closed
Flow Rate	8 GAL/MIN, 30 L/MIN	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Actuation Type	Electrical, Manual	Wire Mesh Screen Included	No
