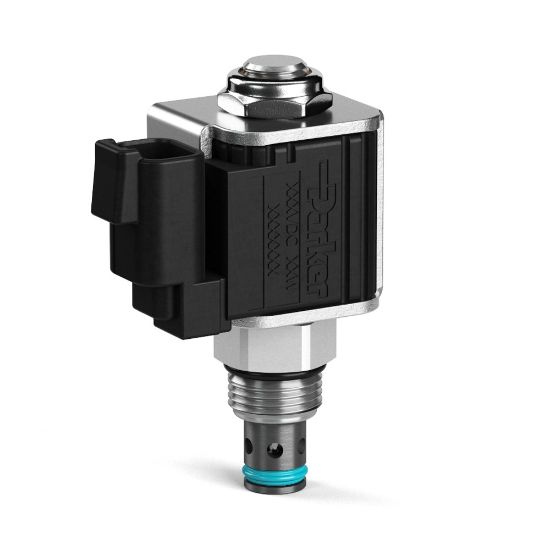

2 Way Spool Type Solenoid Valve - DSH082NTV

Parker’s selection of direct acting 2-way, 2-position spool-type solenoid valves cover a wide range of flows up to 75 lpm (20 gpm) and pressures as high as 350 bar (5000 psi), with both normally-closed and normally-open options available.

Availability:	Backordered
Partner Available:	Backordered

SKU: DSH082NTV

$134.25

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	350 bar	Function	2-way
Body Material	n/a	Minimum Operating Temperature	-15 °F
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Division	Hydraulic Systems Division
Cavity Size	C08-2	Maximum Inlet Pressure Rating	350 bar
Weight	0.25 lb	Response Time	40 ms
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Operating Temperature	+400 °F
Configuration	Normally Open	Actuation Type	Electrical, Manual
Operation Type	Solenoid operated, Manually operated	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-15 to +400 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Wire Mesh Screen Included	No	Mounting Type	Screw in cartridge valve
Coil Type	1/2" Super Coil	Input Voltage	85% of rated voltage at 72°F (20°C) min
Installation Torque	32-36 lb-ft	Override Functionality	Push and Twist
Coil Nut Tightening Torque	7-10 Nm	Flow Rate	8.4 L/min
Leak Rate	160 CC/min @ 5000 PSI (350 BAR) cm3/min	Seal Material	Flurocarbon
Maximum Flow Rate	2.8 Gal/min
Seal Material	Fluorocarbon	Configuration	Normally Open
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Actuation Type	Electrical, Manual
Wire Mesh Screen Included	No	Flow Rate	2.8 GAL/MIN, 8.4 L/MIN
