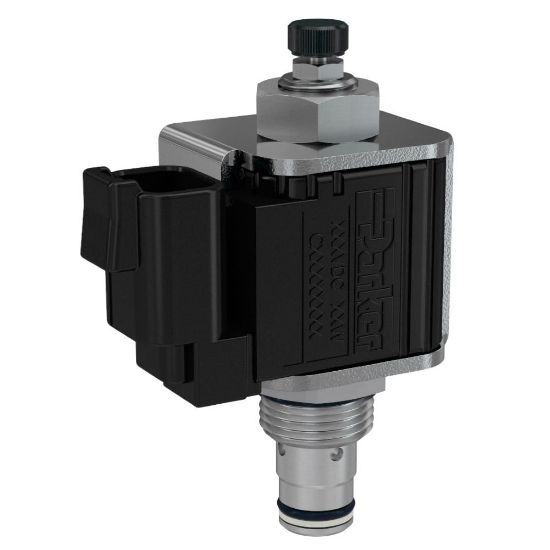

2 Way Poppet Type Solenoid Valve - GH02010V

Name: 2 Way Poppet Type Solenoid Valve - GH02010V
SKU: GH02010V
Availability: OutOfStock

Parker's 2-way poppet solenoid valves check flow in one direction with very low leakage and free flow opposite; normally-open or normally-closed configurations available. Capable of pressures up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm).

Availability:

Backordered

SKU: GH02010V

Qty:

Products specifications

Attribute name	Attribute value
Override Functionality	n/a	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Wire Mesh Screen Included	No	Body Material	n/a
Operating Temperature	-15 to +400 °F	Maximum Operating Temperature	+204 °C
Mounting Type	Screw in cartridge valve	Free Reverse Flow	No
Weight	0.19 lb	Input Voltage	85% of rated voltage at 72°F (20°C) min
Minimum Operating Temperature	-15 °F	Coil Nut Tightening Torque	4.1 Nm
Division	Hydraulic Systems Division	Valve Material	All parts steel. All operating parts hardened steel
Maximum Operating Pressure	4000 psi	Leak Rate	5 drops/min
Installation Torque	20 lb-ft	Cavity Size	C08-2
Maximum Inlet Pressure Rating	285 bar	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Flow Direction	Side to Nose (2-1)	Configuration	Normally Closed w/Flow Control Adjustment
Operation Type	Solenoid operated, Manually operated	Function	2-way
Adjustment Mechanism	Knob Adjustment	Flow Rate	3 Gal/min
Coil Type	1/2" Super Coil	Maximum Flow Rate	3 Gal/min
Actuation Type	Electrical, Manual	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Response Time	20 ms	Seal Material	Fluorocarbon
Wire Mesh Screen Included	No	Maximum Inlet Pressure Rating	4000 PSI, 285 BAR
Seal Material	Fluorocarbon	Configuration	Normally Closed w/Flow Control Adjustment
Flow Rate	3 GAL/MIN, 11 L/MIN	Actuation Type	Electrical, Manual
