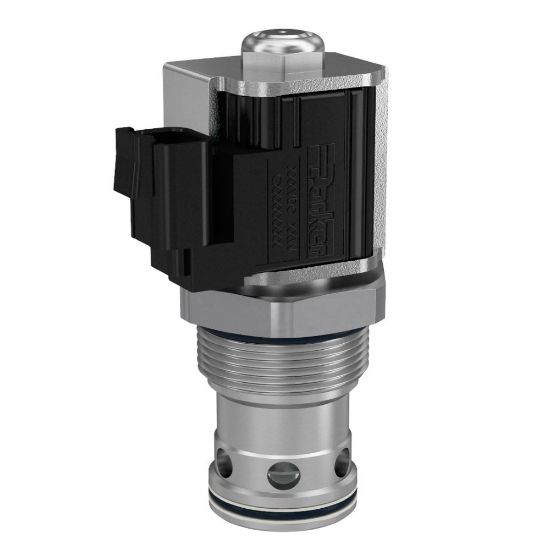

2 Way Poppet Type Solenoid Valve - DSL201NT

Parker's 2-way poppet solenoid valves check flow in one direction with very low leakage and free flow opposite; normally-open or normally-closed configurations available. Capable of pressures up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm).

Availability:	Backordered
Partner Available:	Backordered

SKU: DSL201NT

$285.00

Products specifications

Attribute name	Attribute value
Function	2-way	Seal Material	Nitrile
Body Material	n/a	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Hydraulic Systems Division	Flow Direction	Side to Nose (2-1)
Minimum Operating Temperature	-30 °F	Maximum Operating Pressure	3600 psi
Maximum Flow Rate	70 Gal/min	Cavity Size	C20-2
Weight	0.75 lb	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+121 °C	Configuration	Normally Open
Actuation Type	Electrical, Manual	Operation Type	Solenoid operated, Manually operated
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-34 to +121 °C
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Wire Mesh Screen Included	No
Mounting Type	Screw in cartridge valve	Leak Rate	5 drops/min
Input Voltage	85% of rated voltage at 72°F (20°C) min	Override Functionality	Push and Twist
Coil Nut Tightening Torque	5-7 lb-ft	Adjustment Mechanism	N/A
Free Reverse Flow	No	Coil Type	5/8" Super Coil
Maximum Inlet Pressure Rating	250 bar	Flow Rate	70 Gal/min
Response Time	300 ms	Installation Torque	250-275 lb-ft
Seal Material	Nitrile	Configuration	Normally Open
Actuation Type	Electrical, Manual	Wire Mesh Screen Included	No
Maximum Inlet Pressure Rating	3600 PSI, 250 BAR	Flow Rate	70 GAL/MIN, 260 L/MIN
