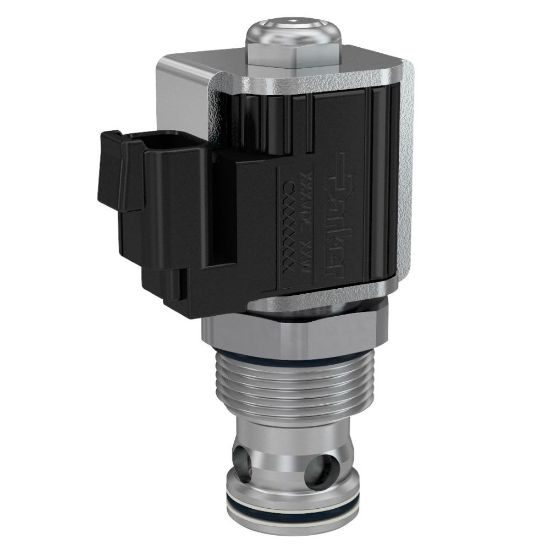

2 Way Poppet Type Solenoid Valve - DSH161C

Parker's 2-way poppet solenoid valves check flow in one direction with very low leakage and free flow opposite; normally-open or normally-closed configurations available. Capable of pressures up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm).

Availability:	Backordered
Partner Available:	11 in stock

SKU: DSH161C

$130.75

Products specifications

Attribute name	Attribute value
Flow Rate	150 L/min	Function	2-way
Seal Material	Nitrile	Body Material	n/a
Maximum Operating Pressure	5000 psi	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Hydraulic Systems Division	Flow Direction	Side to Nose (2-1)
Minimum Operating Temperature	-30 °F	Weight	0.34 kg
Override Functionality	n/a	Maximum Flow Rate	40 Gal/min
Cavity Size	C16-2	Maximum Inlet Pressure Rating	5000 psi
Actuation Type	Electrical	Operation Type	Solenoid Operated
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Operating Temperature	+250 °F
Configuration	Normally Closed	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-30 to +250 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Wire Mesh Screen Included	No	Mounting Type	Screw in cartridge valve
Leak Rate	5 drops/min	Input Voltage	85% of rated voltage at 72°F (20°C) min
Response Time	50 ms	Coil Nut Tightening Torque	5-7 lb-ft
Adjustment Mechanism	N/A	Free Reverse Flow	No
Coil Type	5/8" Super Coil	Installation Torque	169-173 lb-ft
Seal Material	Nitrile	Configuration	Normally Closed
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Flow Rate	40 GAL/MIN, 150 L/MIN
Actuation Type	Electrical	Wire Mesh Screen Included	No
