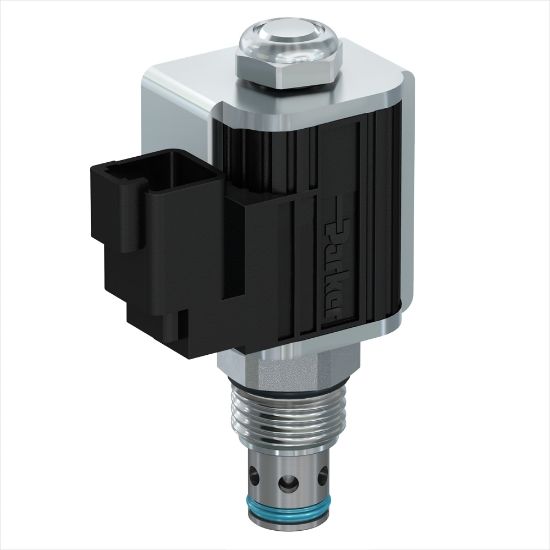

2 Way Poppet Type Solenoid Valve - DSH101C

Parker's 2-way poppet solenoid valves check flow in one direction with very low leakage and free flow opposite; normally-open or normally-closed configurations available. Capable of pressures up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm).

Availability:	Backordered
Partner Available:	64 in stock

SKU: DSH101C

$72.50

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	350 bar	Flow Rate	60 L/min
Function	2-way	Body Material	n/a
Minimum Operating Temperature	-37 °C	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Hydraulic Systems Division	Flow Direction	Side to Nose (2-1)
Maximum Operating Temperature	+200 °F	Maximum Flow Rate	60 L/min
Override Functionality	n/a	Weight	0.41 lb
Cavity Size	C10-2	Maximum Inlet Pressure Rating	5000 psi
Seal Material	D-Ring (Standard)	Actuation Type	Electrical
Operation Type	Solenoid Operated	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Configuration	Normally Closed	Valve Material	All parts steel. All operating parts hardened steel
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Wire Mesh Screen Included	No
Mounting Type	Screw in cartridge valve	Operating Temperature	-37 to +93 °C
Leak Rate	5 drops/min	Input Voltage	85% of rated voltage at 72°F (20°C) min
Coil Nut Tightening Torque	7-10 Nm	Adjustment Mechanism	N/A
Free Reverse Flow	No	Coil Type	5/8" Super Coil
Response Time	80 ms	Installation Torque	51-55 lb-ft
Configuration	Normally Closed	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Seal Material	D-Ring (Standard)	Actuation Type	Electrical
Wire Mesh Screen Included	No	Flow Rate	15 GAL/MIN, 60 L/MIN
