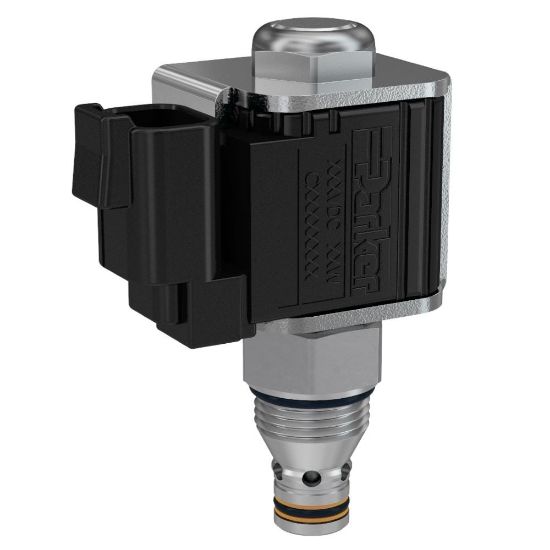

2 Way Poppet Type Bi-Directional Solenoid Valve - GS028121N

Name: 2 Way Poppet Type Bi-Directional Solenoid Valve - GS028121N
SKU: GS028121N
Availability: OutOfStock

Parker’s 2-way bi-directional poppet solenoid valves block flow both directions with very low leakage and are available in normally-open or normally closed configurations. Capable of pressures up to 350 bar (5000 psi) and flows up to 285 lpm (75 gpm).

Availability:

Backordered

SKU: GS028121N

Qty:

Products specifications

Attribute name	Attribute value
Connection Size	n/a	Function	2-way
Seal Material	Nitrile	Specifications Met	N/A
Body Material	n/a	Maximum Operating Pressure	5000 psi
Flow Direction	Bi-directional	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Hydraulic Systems Division	Minimum Operating Temperature	-34 °C
Cavity Size	C08-2	Maximum Inlet Pressure Rating	5000 psi
Coil Type	1/2" Super Coil High Watt (CCP)	Installation Torque	30 Nm
Coil Nut Tightening Torque	4.1 Nm	Flow Rate	34 L/min
Maximum Flow Rate	9 Gal/min	Response Time	40 ms
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Operating Temperature	+250 °F
Configuration	Normally Closed	Actuation Type	Electrical, Manual
Operation Type	Solenoid operated, Manually operated	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-30 to +250 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Mounting Type	Screw in cartridge valve	Leak Rate	5 drops/min
Input Voltage	85% of rated voltage at 72°F (20°C) min	Wire Mesh Screen Included	Yes
Application	Mobile Hydraulics, Industrial Hydraulics	Bore Diameter	N/A
Seat Material	Steel	Flange Face Type	N/A
ANSI Flange Class	N/A	Override Functionality	Non-Detented
Weight	0.31 lb
Seal Material	Nitrile	Configuration	Normally Closed
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Flow Rate	9 GAL/MIN, 34 L/MIN
Actuation Type	Electrical, Manual	Wire Mesh Screen Included	Yes
