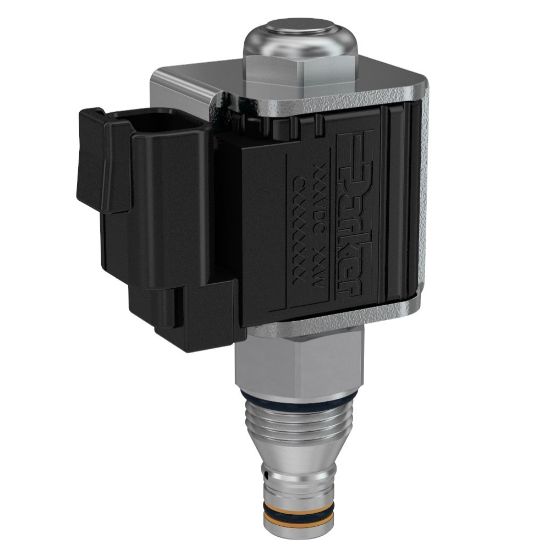

2 Way Poppet Type Bi-Directional Solenoid Valve - GS027701V

Name: 2 Way Poppet Type Bi-Directional Solenoid Valve - GS027701V
SKU: GS027701V
Availability: OutOfStock

Parker’s 2-way bi-directional poppet solenoid valves block flow both directions with very low leakage and are available in normally-open or normally closed configurations. Capable of pressures up to 350 bar (5000 psi) and flows up to 285 lpm (75 gpm).

Availability:

Backordered

SKU: GS027701V

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.14 kg	Connection Size	n/a
Function	2-way	Maximum Operating Pressure	3000 psi
Specifications Met	N/A	Seal Material	Fluorocarbon
Body Material	n/a	Flow Direction	Bi-directional
Minimum Operating Temperature	-15 °F	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Hydraulic Systems Division	Override Functionality	n/a
Cavity Size	C08-2	Actuation Type	Electrical
Operation Type	Solenoid Operated	Installation Torque	22 lb-ft
Coil Nut Tightening Torque	4.1 Nm	Response Time	10 ms
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Operating Temperature	+204 °C
Configuration	Normally Open	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-15 to +400 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Maximum Inlet Pressure Rating	210 bar	Mounting Type	Screw in cartridge valve
Coil Type	1/2" Super Coil	Leak Rate	5 drops/min
Input Voltage	85% of rated voltage at 72°F (20°C) min	Wire Mesh Screen Included	Yes
Application	Mobile Hydraulics, Industrial Hydraulics	Bore Diameter	N/A
Seat Material	Steel	Flange Face Type	N/A
ANSI Flange Class	N/A	Flow Rate	1.7 L/min
Maximum Flow Rate	1.7 L/min
Seal Material	Fluorocarbon	Configuration	Normally Open
Maximum Inlet Pressure Rating	3000 PSI, 210 BAR	Actuation Type	Electrical
Wire Mesh Screen Included	Yes	Flow Rate	0.45 GAL/MIN, 1.7 L/MIN
