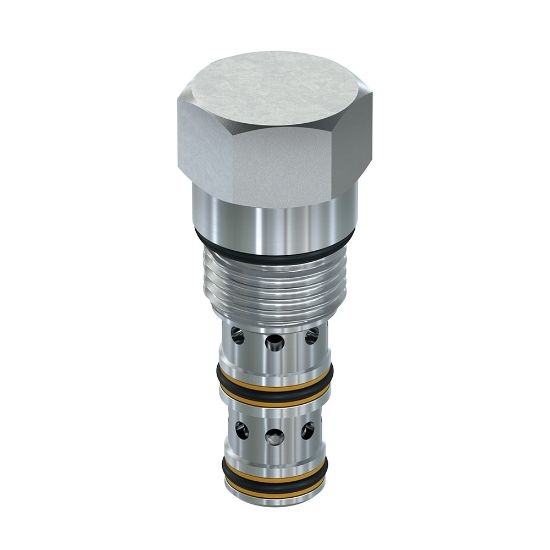

2 Way Pilot Operated Directional Control Valves - R04C3-5.0NS

Name: 2 Way Pilot Operated Directional Control Valves - R04C3-5.0NS
SKU: R04C3-5.0NS
Availability: OutOfStock

A pilot-operated, cartridge style screw-in hydraulic directional valve used in two way circuits with remote pilot actuation. Available in both normally-open and normally-closed orientation.

Availability:

Backordered

SKU: R04C3-5.0NS

Qty:

Products specifications

Attribute name	Attribute value
Operation Type	Pilot Operated	Seal Material	Nitrile
Maximum Operating Pressure	6000 psi	Body Material	n/a
Division	Hydraulic Cartridge Systems Division	Actuation Type	Pilot to Close
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Pilot Location	External
Minimum Operating Temperature	-34 °C	Weight	0.33 lb
Division	Mobile Hydraulic Systems Division Europe	Installation Torque	37 lb-ft
Maximum Inlet Pressure Rating	420 bar	Cavity Size	C10-3
Drain Option	Internal	Sealed Pilot Included	Yes
Maximum Flow Rate	21 Gal/min	Function	Diverter
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Operating Temperature	+250 °F
Configuration	Normally Open	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-30 to +250 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Switching Pressure	5 bar	Flow Rate	21 Gal/min
Flow Direction	2-3 or 3-2	Leak Rate	50 @ 1450 PSI (100 BAR) cm3/min
Standard Flow Rate Setting	40 L/min
Seal Material	Nitrile	Configuration	Normally Open
Sealed Pilot Included	Yes	Switching Pressure	73 PSI, 5 BAR
Flow Rate	21 GAL/MIN, 80 L/MIN
