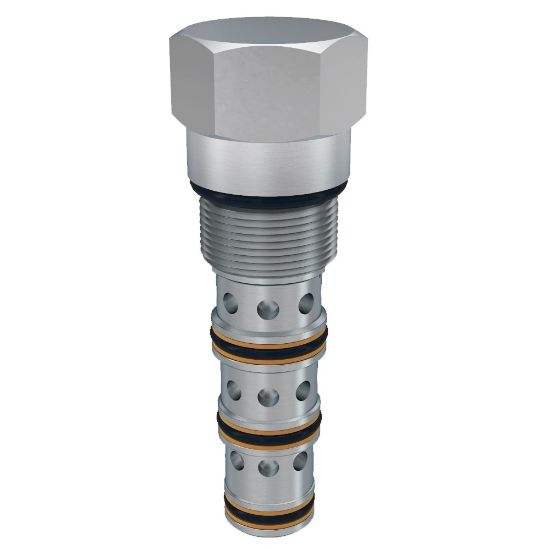

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

2 Way Pilot Operated Directional Control Valves - R04A4-5.0V

Name: 2 Way Pilot Operated Directional Control Valves - R04A4-5.0V
SKU: R04A4-5.0V
Availability: OutOfStock

A pilot-operated, cartridge style screw-in hydraulic directional valve used in two way circuits with remote pilot actuation. Available in both normally-open and normally-closed orientation.

Availability:

Backordered

SKU: R04A4-5.0V

Qty:

Products specifications

Attribute name	Attribute value
Operation Type	Pilot Operated	Drain Option	External
Actuation Type	Pilot to Close	Body Material	n/a
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Operating Temperature	+204 °C
Valve Material	All parts steel. All operating parts hardened steel	Flow Rate	80 L/min
Maximum Flow Rate	21 Gal/min	Maximum Operating Pressure	420 bar
Pilot Location	External	Division	Hydraulic Cartridge Systems Division
Operating Temperature	-15 to +400 °F	Maximum Inlet Pressure Rating	420 bar
Switching Pressure	5 bar	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Sealed Pilot Included	No	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Seal Material	Fluorocarbon	Weight	0.37 lb
Flow Direction	2-3 or 3-2	Minimum Operating Temperature	-15 °F
Cavity Size	C10-4	Division	Mobile Hydraulic Systems Division Europe
Leak Rate	55 @ 1450 PSI (100 BAR) cm3/min	Function	Diverter
Standard Flow Rate Setting	47 L/min	Installation Torque	37 lb-ft
Configuration	Normally Open
Sealed Pilot Included	No	Configuration	Normally Open
Switching Pressure	73 PSI, 5 BAR	Flow Rate	21 GAL/MIN, 80 L/MIN
Seal Material	Fluorocarbon
