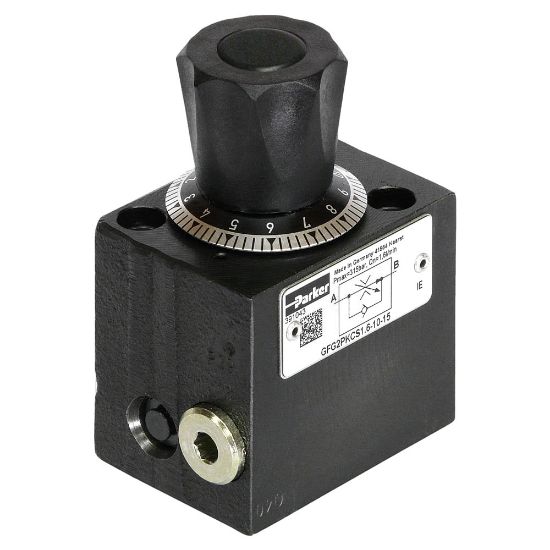

2-Way Flow Control Valve - Series GFG2 - GFG2PK18V-10

Name: 2-Way Flow Control Valve - Series GFG2 - GFG2PK18V-10
SKU: GFG2PK18V-10
Availability: OutOfStock

2-way flow control valves series GFG provide pressure compensated flow for a precise movement control. The valve design largely compensates temperature variations.

Availability:

Backordered

SKU: GFG2PK18V-10

Qty:

Products specifications

Attribute name	Attribute value
Port Connection	NG06	Actuation Type	Manually
Maximum Flow Rate	18 L/min	Product Series	Flow Valve
Maximum Operating Temperature	60 °C	Maximum Operating Pressure	315 bar
Mounting Position	Unrestricted	Body Material	Steel
Mounting Type	Subplate	Flow Rate	0.080 to 18 L/min
Seal Material	FPM	Function	2-way, Without check valve
Weight	1.1 kg	Minimum Operating Temperature	-20 °C
Connection Type	n/a	Configuration	n/a
Connection Size	n/a	Division	Industrial Systems Division Europe
Pressure Compensation Type	Internal control	Seal Material	FPM
Valve Type	Without check valve	Locking Mechanism	Without lock
Flow Rate	0.080 to 18 L/MIN
