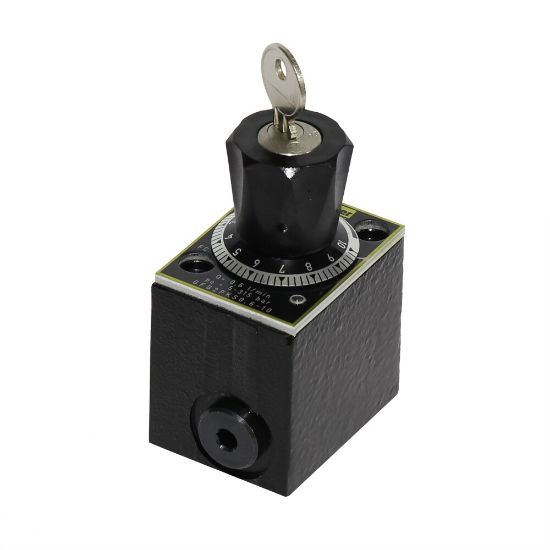

2-Way Flow Control Valve - Series GFG2 - GFG2PK1.6V-10

Name: 2-Way Flow Control Valve - Series GFG2 - GFG2PK1.6V-10
SKU: GFG2PK1.6V-10
Availability: OutOfStock

2-way flow control valves series GFG provide pressure compensated flow for a precise movement control. The valve design largely compensates temperature variations.

Availability:

Backordered

SKU: GFG2PK1.6V-10

Qty:

Products specifications

Attribute name	Attribute value
Product Series	Flow Valve	Body Material	Steel
Mounting Type	Subplate	Seal Material	FPM
Maximum Flow Rate	1.6 L/min	Function	2-way, Without check valve
Connection Type	n/a	Flow Rate	0.015 to 1.6 L/min
Weight	1.1 kg	Configuration	n/a
Division	Industrial Systems Division Europe	Connection Size	n/a
Minimum Operating Temperature	-20 °C	Mounting Position	Unrestricted
Actuation Type	Manually	Maximum Operating Temperature	60 °C
Maximum Operating Pressure	315 bar	Port Connection	NG06
Locking Mechanism	Without lock	Valve Type	Without check valve
Seal Material	FPM	Flow Rate	0.015 to 1.6 L/MIN
Pressure Compensation Type	Internal control
