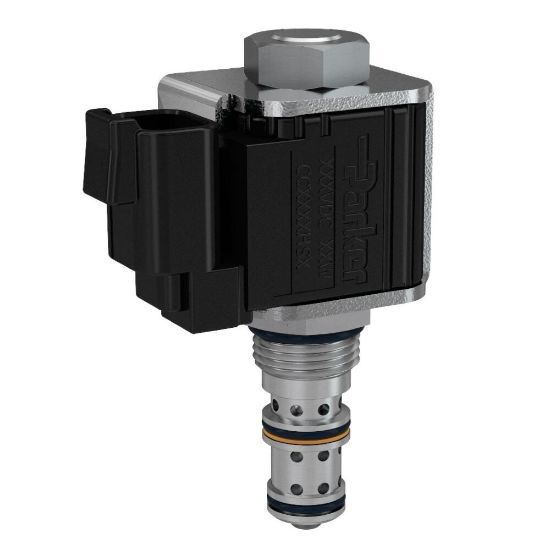

2 Way Flow Control Proportional Valves - JP02P2101NL

Name: 2 Way Flow Control Proportional Valves - JP02P2101NL
SKU: JP02P2101NL
Availability: OutOfStock

Parker offers an extensive range of 2-way flow control proportional valves through the use of Current Controlled Pulse Width Modulation (PWM) valve drivers with flow capabilities up to 227 lpm (60 gpm) and pressures as high as 210 bar (3000 psi).

Availability:

Backordered

SKU: JP02P2101NL

Qty:

Products specifications

Attribute name	Attribute value
Operating Temperature	-30 to +250	Configuration	Normally Open, Pressure Compensated
Minimum Operating Temperature	-30	Maximum Operating Temperature	+250
Hysteresis	< 3%	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Flow Rate	5.0
Flow Rate	5	Seal Material	Nitrile
Actuation Type	Electrical	Minimum Pressure Differential	300
Operation Type	Solenoid Operated	Function	Proportional Flow Control/Regulator
Body Material	n/a	Installation Torque	20
Maximum Operating Pressure	3000	Flow Rate Accuracy	+/- 7%
Frequency	100-400	Wire Mesh Screen Included	Yes
Weight	0.17	Maximum Inlet Pressure Rating	3000
Valve Material	All parts steel. All operating parts hardened steel	Current	Max: 1.58 @ 12 VDC, 0.79 @ 24 VDC
Division	Hydraulic Systems Division	Division	Hydraulic Valve Systems Division
Leak Rate	570 @ 3000 PSI (210 BAR)	Override Functionality	n/a
Coil Type	1/2" Super Coil High Watt (CCP)	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Variation of Opening Point	N/A	Flow Direction	Top to Side (3 - 2)
Power Consumption	19	Cavity Size	C08-3
Connection Type	n/a	Coil Nut Tightening Torque	3
Variation of Closing Point	75% of Input Signal	Connection Size	n/a
Actuation Type	Electrical	Flow Rate	5 GAL/MIN, 19 L/MIN
Seal Material	Nitrile	Configuration	Normally Open, Pressure Compensated
