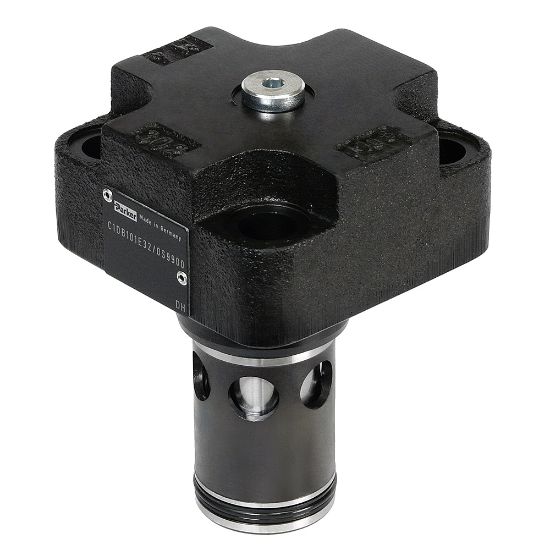

2-Way Cartridge Check Valve - Series C1DB - 042090200238

Name: 2-Way Cartridge Check Valve - Series C1DB - 042090200238
SKU: 042090200238
Availability: OutOfStock

The check valve series C1DB is a ready-for-use cartridge valve using proven components of Parker's modular DIN cartridge system. It provides a wide range of options and is particularly suitable for a compact manifold block installation.

Availability:

Backordered

SKU: 042090200238

Qty:

Products specifications

Attribute name	Attribute value
Division	Industrial Systems Division Europe	Maximum Operating Temperature	60 °C
Maximum Operating Pressure	350 bar	Configuration	n/a
Mounting Type	Slip-in Cartridge	Seal Material	NBR
For Fluid Type	Hydraulic Oil	Maximum Flow Rate	900 L/min
Body Material	Cast Iron	Product Series	Check Valve
Connection Size	n/a	Actuation Type	Hydraulic Pressure
Flow Direction	A to B	Operation Type	Manual
Cracking Pressure	4.0 bar	Weight	3.9 kg
Minimum Operating Temperature	-25 °C	Port Connection	NG32
Function	Check Valve	Flow Rate	0 to 900 L/min
Connection Type	ISO 7368	Operating Pressure	n/a
Port Connection	NG32	Material - Seals	NBR
Minimum Opening Pressure (bar)	4
