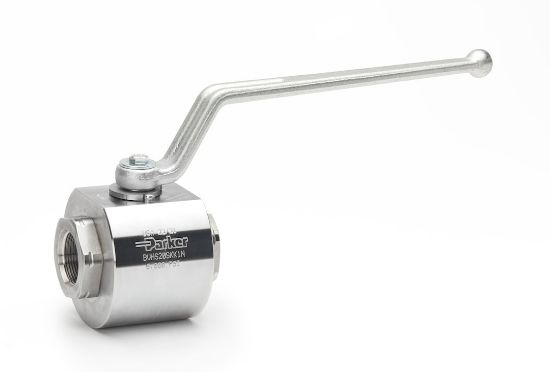

2-way, 3-way, 4-way High Pressure Ball Valves – BV Series - BVHP20FKK4VA

Name: 2-way, 3-way, 4-way High Pressure Ball Valves – BV Series - BVHP20FKK4VA
SKU: BVHP20FKK4VA
Availability: OutOfStock

Parker’s High Pressure BV Series ball valves offer a variety of porting and thread types. These valves are rated up to 11,600 psi and are zinc coated to extend the live of the valve.

Availability:

Backordered

SKU: BVHP20FKK4VA

Qty:

Products specifications

Attribute name	Attribute value
Actuation Type	Manual	Function	2-way
Connection Size	1-1/4 inch	Mounting Type	Inline
Body Material	Stainless Steel	Seal Material	Fluorocarbon
Maximum Operating Temperature	100 °F	Division	Hydraulic Valve Systems Division
Minimum Operating Temperature	-20 °F	Configuration	Inline
Options	n/a	Handle Type	Locking Handle
Weight	15.0 lb	Product Type	2-Way Shut Off
Connection Type	C.62 Split Flange	Maximum Operating Pressure	7500 psi
Product Type	7500 PSI	Connection Type	Inline
Connection Size	C.62 Slpit Flange	Maximum Pressure (psi)	1-1/4"
