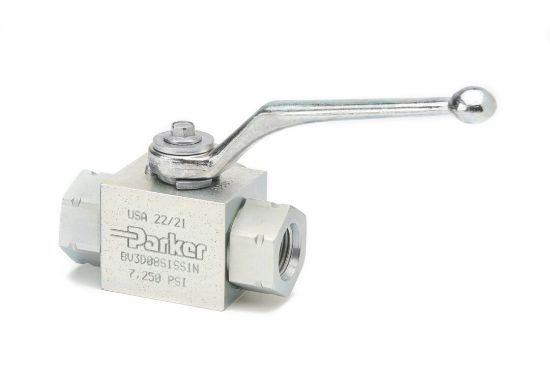

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

2-way, 3-way, 4-way High Pressure Ball Valves – BV Series - BV3D20S1SS1VC

Name: 2-way, 3-way, 4-way High Pressure Ball Valves – BV Series - BV3D20S1SS1VC
SKU: BV3D20S1SS1VC
Availability: OutOfStock

Parker’s High Pressure BV Series ball valves offer a variety of porting and thread types. These valves are rated up to 11,600 psi and are zinc coated to extend the live of the valve.

Availability:

Backordered

SKU: BV3D20S1SS1VC

Qty:

Products specifications

Attribute name	Attribute value
Body Material	Steel	Actuation Type	Manual
Mounting Type	Inline	Seal Material	Fluorocarbon
Maximum Operating Temperature	100 °F	Connection Type	SAE
Division	Hydraulic Valve Systems Division	Function	3-Way
Minimum Operating Temperature	-20 °F	Product Type	3-Way Diverter
Configuration	L-Bore Port Overlap	Maximum Operating Pressure	7250 psi
Options	1-way Limit Switch	Handle Type	Standard Handle
Weight	13.75 lb	Connection Size	20 mm
Connection Type	SAE	Product Type	3-Way Diverter
Mounting Type	Inline	Maximum Pressure (psi)	7250 PSI
Connection Size	#20

California Residents: Prop-65 Warning

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Hydraulic Valve Division Safety Guide
