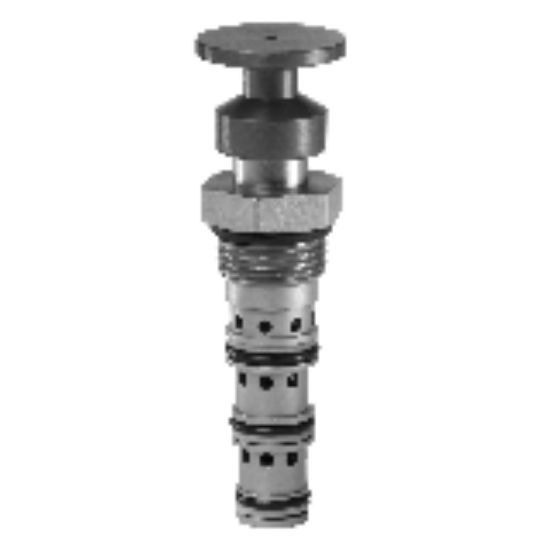

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

2 Position, 4 Way Push to Shift Manual Valve - GM0240XS1V

Name: 2 Position, 4 Way Push to Shift Manual Valve - GM0240XS1V
SKU: GM0240XS1V
Availability: OutOfStock

Note: This product is no longer available - please contact us for further assistance.

Availability:

Backordered

SKU: GM0240XS1V

Qty:

Products specifications

Attribute name	Attribute value
Maximum Flow Rate	4 Gal/min	Configuration	Reversing
Weight	0.1 kg	Seal Material	Fluorocarbon
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Maximum Operating Temperature	+204 °C
Flow Rate	4 Gal/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Body Material	n/a	Maximum Inlet Pressure Rating	5000 psi
Leak Rate	360 @ 5000 PSI (350 BAR) cm3/min	Operating Temperature	-15 to +400 °F
Cavity Size	C10-4	Maximum Tank Pressure	500 psi
Division	Hydraulic Systems Division	Division	Hydraulic Valve Systems Division
Minimum Operating Temperature	-15 °F	Function	Spool Type
Valve Material	All parts steel. All operating parts hardened steel	Operation Type	Manual
Force	11 lbf	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Operating Pressure	350 bar	Detents	Yes
Actuation Type	Knob	Installation Torque	30 Nm
Flow Rate	4 GAL/MIN, 15 L/MIN	Actuation Type	Knob
Seal Material	Fluorocarbon	Configuration	Reversing

Product resources

Literature and Reference Materials

HVS Global Cartridge Valve Catalog MSG15-3504
