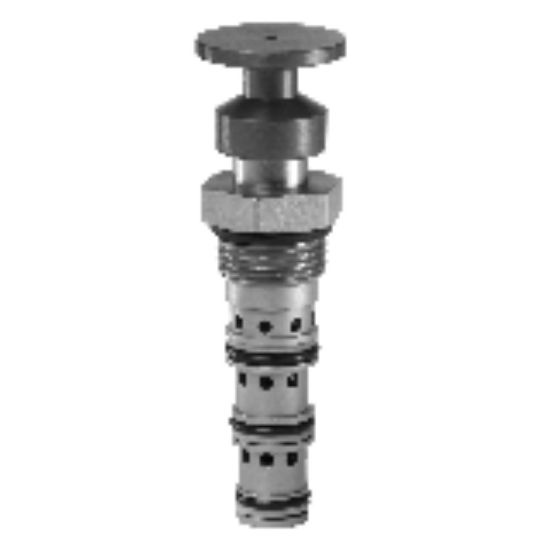

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

2 Position, 4 Way Push to Shift Manual Valve - GM0240CS1V

Name: 2 Position, 4 Way Push to Shift Manual Valve - GM0240CS1V
SKU: GM0240CS1V
Availability: OutOfStock

Note: This product is no longer available - please contact us for further assistance.

Availability:

Backordered

SKU: GM0240CS1V

Qty:

Products specifications

Attribute name	Attribute value
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Operating Temperature	+204 °C
Configuration	Normally Closed	Flow Rate	4 Gal/min
Body Material	n/a	Operating Temperature	-15 to +400 °F
Maximum Tank Pressure	35 bar	Minimum Operating Temperature	-26 °C
Function	Spool Type	Maximum Flow Rate	15 L/min
Installation Torque	30 Nm	Cavity Size	C10-4
Actuation Type	Knob	Detents	Yes
Division	Hydraulic Valve Systems Division	Operation Type	Manual
Valve Material	All parts steel. All operating parts hardened steel	Force	11 lbf
Division	Hydraulic Systems Division	Leak Rate	200 @ 5000 PSI (350 BAR) cm3/min
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Weight	0.25 lb
Maximum Operating Pressure	350 bar	Maximum Inlet Pressure Rating	5000 psi
Seal Material	Fluorocarbon	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Seal Material	Fluorocarbon	Actuation Type	Knob
Flow Rate	4 GAL/MIN, 15 L/MIN	Configuration	Normally Closed

Product resources

Literature and Reference Materials

HVS Global Cartridge Valve Catalog MSG15-3504
