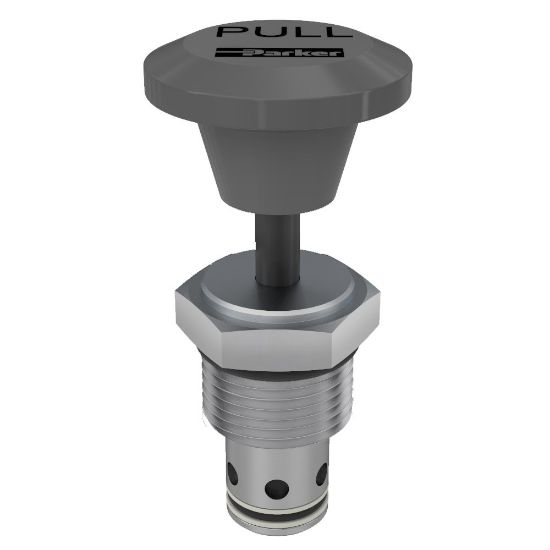

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

2 Position, 2 Way Normally Closed Poppet Type Manual Valve - DL101TV

Name: 2 Position, 2 Way Normally Closed Poppet Type Manual Valve - DL101TV
SKU: DL101TV
Availability: OutOfStock

REGIONAL - Parker’s 2-position, 2-way normally-closed manual poppet valves are available with stem, knob, or lever actuators and are capable of flows up to 49 lpm (13 gpm) and pressures as high as 210 bar (3000 psi).

Availability:

Backordered

SKU: DL101TV

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.09 kg	Maximum Operating Pressure	240 bar
Connection Size	n/a	Connection Type	n/a
Operation Type	Manual	Seal Material	Fluorocarbon
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Minimum Operating Temperature	-26 °C	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Hydraulic Systems Division	Installation Torque	16 lb-ft
Maximum Inlet Pressure Rating	240 bar	Cavity Size	C10-2
Cracking Pressure	n/a	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+400 °F	Configuration	Normally Closed
Valve Material	All parts steel. All operating parts hardened steel	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Function	Poppet Type	Flow Rate	48.8 L/min
Leak Rate	5 @ 3500 PSI (240 BAR) drops/min	Mounting Type	Screw in cartridge valve
Actuation Type	Stem	Flow Direction	Port 2 (side) inlet - Port 1 (nose) outlet
Maximum Flow Rate	48.8 L/min	Maximum Tank Pressure	250 psi
Operating Temperature	-15 to +400 °C
Seal Material	Fluorocarbon	Configuration	Normally Closed
Flow Rate	13 GAL/MIN, 48.8 L/MIN	Actuation Type	Stem
