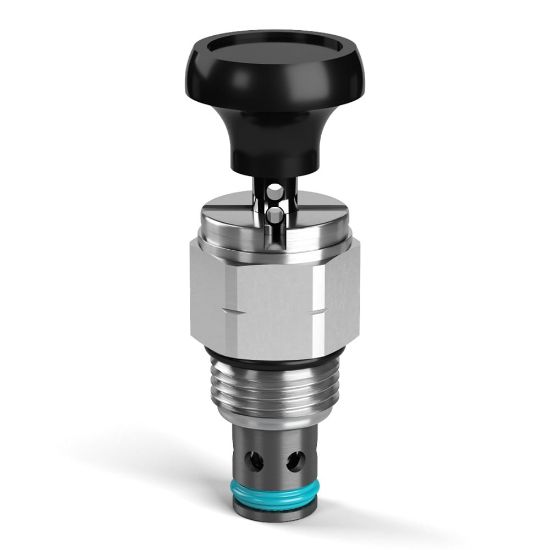

2 Position, 2 Way Normally Closed Poppet Type Manual Valve - DL081LN

Name: 2 Position, 2 Way Normally Closed Poppet Type Manual Valve - DL081LN
SKU: DL081LN
Availability: OutOfStock

REGIONAL - Parker’s 2-position, 2-way normally-closed manual poppet valves are available with stem, knob, or lever actuators and are capable of flows up to 49 lpm (13 gpm) and pressures as high as 210 bar (3000 psi).

Availability:

Backordered

SKU: DL081LN

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.08 kg	Connection Size	n/a
Connection Type	n/a	Operation Type	Manual
Seal Material	Nitrile	Maximum Operating Pressure	3000 psi
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Division	Hydraulic Systems Division
Minimum Operating Temperature	-30 °F	Maximum Flow Rate	8 Gal/min
Flow Rate	8 Gal/min	Cavity Size	C08-2
Maximum Inlet Pressure Rating	3000 psi	Cracking Pressure	n/a
Installation Torque	15 lb-ft	Actuation Type	Lever
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Operating Temperature	+121 °C
Configuration	Normally Closed	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-34 to +121 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Function	Poppet Type	Leak Rate	5 @ 3000 PSI (210 BAR) drops/min
Mounting Type	Screw in cartridge valve	Flow Direction	Port 2 (side) inlet - Port 1 (nose) outlet
Maximum Tank Pressure	80 psi
Seal Material	Nitrile	Configuration	Normally Closed
Flow Rate	8 GAL/MIN, 30 L/MIN	Actuation Type	Lever
