SHOP Quick Coupling

Parker Quick Coupling Division offers industry standard hydraulic, pneumatic, instrumentation and diagnostic quick disconnect coupling products. Shop for leading brands such as Pioneer, Tru-Flate, E-Z Mate and Twist-Lock. A complete offering of Industrial Interchange pneumatic quick couplers and nipples are in-stock for immediate delivery as well.

Narrow Your Results

SELECTED FILTERS

Manually Selectedclear all

	Department: Parker Divisions
	Division Name: Quick Coupling
	Product: 10 Series Coupler - Hose Barb

1- Trade Name: Tru-Flate

Automatically Selected

»	Quick Coupler Type: Pneumatic Manual Connect
»	Series: 10
»	Configuration Type: Hose Barb
»	Max Pressure Range: 250 to 499 PSI (17 to 34 bar)
»	Inch/Metric: Inch
»	Application: Pneumatic
»	Coupler/Nipple/Shell: Coupler
»	Inner Diameter Inch/mm: Inch
»	Parker Division: Quick Coupling

UN-SELECTED FILTERS

Click Image to Zoom

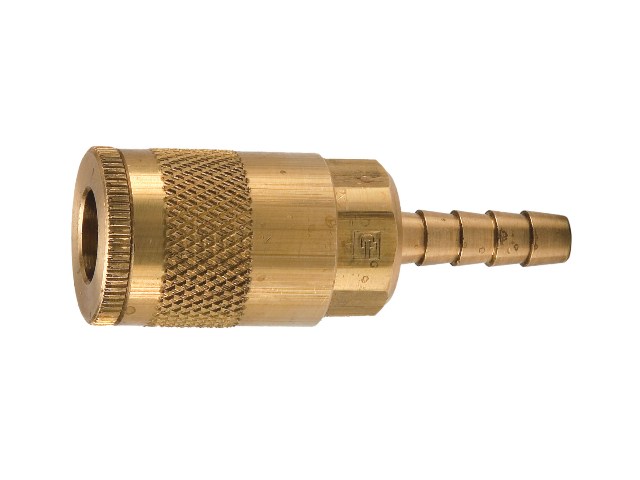

10 Series Coupler - Hose Barb

*Product image is representative provided by the manufacturer. Do not make buying decisions soley based on the image. Please verify specifications meet your requirements.

10 Series Coupler - Hose Barb

Tru-Flate Pneumatic Manual Connect

Email this page to a friend

Showing variations based on selected filters. Show all variations .

Bold items are most common and readily available.

Showing 1 - 8 of 8

	Part #	In-Stock	Price/UOM
+	14-5B	Contact Us	$39.13
+	14-6B	Contact Us	$39.71
+	16-5B	Contact Us	$39.69
+	16-6B	3	$38.71
+	B10-3B	Contact Us	$23.41
+	B10-3BP	Contact Us	$27.75
+	B10-5B	Contact Us	$25.52
+	B10-5BP	3	$27.38

Body Size	UOM	Inner Diameter	Max Pressure	Material
3/8 Inch	EA	0.375 Inch	300 PSI (20 bar)	Steel
3/8 Inch	EA	0.5 Inch	300 PSI (20 bar)	Steel
1/2 Inch	EA	0.375 Inch	300 PSI (20 bar)	Steel
1/2 Inch	EA	0.5 Inch	300 PSI (20 bar)	Steel
1/4 Inch	EA	0.25 Inch	300 PSI (20 bar)	Brass
1/4 Inch	EA	0.25 Inch	300 PSI (20 bar)	Brass
1/4 Inch	EA	0.375 Inch	300 PSI (20 bar)	Brass
1/4 Inch	EA	0.375 Inch	300 PSI (20 bar)	Brass

Parker 10 Series Tru-Flate Quick Disconnect Coupler are general purpose, single shut off, manual sleeve, quick disconnects. The manual ball locking mechanism requires two-handed operation to retract the sleeve for connection or disconnection.
